What Determines the Performance of Mechanical Seals Rings and Faces?

2025-08-08

In the intricate world of industrial machinery, where even the smallest components can dictate operational success, mechanical seals rings and faces stand as the critical interface that prevents leakage and ensures efficiency. These components form the core of mechanical seals, creating a tight barrier between rotating and stationary parts in pumps, compressors, and other equipment. The performance of these rings and faces directly impacts everything from machinery lifespan and operational costs to workplace safety and environmental compliance. But what specific factors make some mechanical seals rings and faces outperform others? This guide delves into the role of these components, their key characteristics, detailed specifications of our premium products, and answers to common questions to highlight their importance in industrial applications.

Trending News Headlines: Top Searches on Mechanical Seals Rings and Faces

Search trends reflect the industrial focus on these critical components, with users prioritizing durability, material compatibility, and performance in extreme conditions:

"How to Extend the Lifespan of Mechanical Seal Rings in Abrasive Fluids"

"Ceramic vs. Tungsten Carbide: Which Seal Face Material Offers Better Value?"

These headlines underscore the core concerns of industries relying on mechanical seals: selecting the right materials, maximizing longevity, and balancing performance with cost. As machinery operates under increasingly demanding conditions, the choice of seals rings and faces has become a strategic decision that directly impacts bottom-line results.

Why Mechanical Seals Rings and Faces Are the Heart of Seal Performance

Mechanical seals rings and faces are not mere accessories—they are the critical components that determine a seal’s ability to prevent leakage, withstand harsh conditions, and maintain efficiency over time. Here’s why their quality and design matter:

Leak Prevention: The Primary Function
The primary role of mechanical seals rings and faces is to create a leak-tight interface between moving and stationary parts. When these components are precision-engineered and made from high-quality materials, they form a microscopically thin fluid film that lubricates the interface while preventing fluid escape. A single scratch, warp, or material degradation in the ring or face can break this film, leading to leaks that waste resources, damage equipment, and pose safety risks. For example, in chemical processing, a compromised seal face can allow toxic fluids to leak, endangering workers and violating environmental regulations. High-quality rings and faces ensure consistent contact and film formation, even under pressure and temperature fluctuations, making them essential for reliable leak prevention.
Resistance to Wear and Degradation
Industrial machinery operates in environments that are inherently hostile to components: high pressures, extreme temperatures, corrosive chemicals, and abrasive particles are common. Mechanical seals rings and faces must resist wear, erosion, and chemical attack to maintain performance. For instance, in mining applications, seals face constant exposure to abrasive slurries that can quickly erode low-quality materials. Rings and faces made from hard, wear-resistant materials (such as tungsten carbide or silicon carbide) stand up to these conditions, extending the seal’s lifespan and reducing the need for frequent replacements. Similarly, in high-temperature applications like power generation, heat-resistant materials prevent warping or melting, ensuring the seal remains functional even when temperatures exceed 400°C.
Energy Efficiency and Reduced Friction
The interaction between the seal ring and face generates friction, which can increase energy consumption in machinery. High-quality rings and faces, designed with smooth surfaces and compatible material pairings, minimize friction. For example, a carbon graphite face paired with a ceramic ring creates a low-friction interface that reduces energy loss, making pumps and compressors more efficient. Over time, this translates to lower energy bills and reduced operational costs—a significant benefit for industries with high energy usage, such as manufacturing or water treatment. Additionally, reduced friction lowers heat generation, preventing overheating and extending the life of both the seal and the machinery.
Compatibility with Diverse Fluids and Applications
No two industrial applications are identical, and mechanical seals rings and faces must be tailored to the specific fluids they handle. A seal face that works well with water may degrade rapidly in contact with acids, while a ring designed for low-pressure systems may fail under high-pressure conditions. For example, in food processing, seal rings must be made from FDA-approved materials that resist corrosion from cleaning agents and do not contaminate food products. In oil & gas applications, rings and faces must withstand exposure to hydrocarbons and high pressures without swelling or breaking down. High-quality components are available in a range of materials and designs, ensuring compatibility with diverse fluids, pressures, and temperatures, making them versatile enough for industries from pharmaceuticals to wastewater treatment.

Key Characteristics of High-Quality Mechanical Seals Rings and Faces

The performance of mechanical seals rings and faces is determined by several key characteristics, each of which must be carefully considered when selecting components for specific applications:

Material Selection
The choice of material is the most critical factor in determining a ring or face’s performance. Common materials include:

Carbon Graphite: Offers excellent self-lubrication and chemical resistance, ideal for low to medium pressure applications with non-abrasive fluids (e.g., water, oils).

Ceramic (Alumina): Hard and wear-resistant, suitable for abrasive fluids like slurries, but brittle and prone to cracking under impact.

Tungsten Carbide: Exceptionally hard and durable, perfect for high-pressure, high-temperature applications (e.g., oil & gas) and abrasive environments.

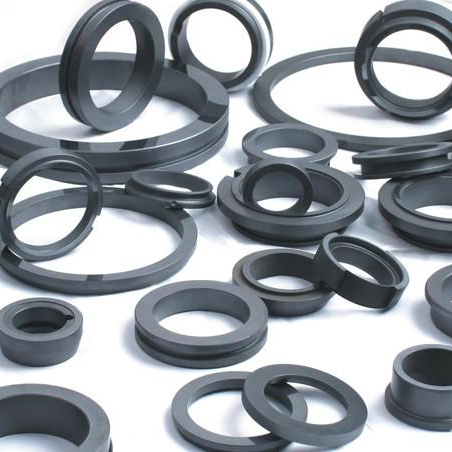

Silicon Carbide: Combines high hardness with corrosion resistance, making it ideal for chemical processing and high-temperature applications.

PTFE (Teflon): Resists chemical attack from aggressive substances, suitable for specialized applications in chemical and pharmaceutical industries.

The best performance often comes from pairing materials (e.g., a tungsten carbide ring with a silicon carbide face) to balance wear resistance, lubrication, and cost.
Surface Finish and Flatness
Even high-quality materials can fail if the ring or face has an uneven surface or poor flatness. The interface between the ring and face must be flat to within micrometers to ensure uniform contact and fluid film formation. A surface with scratches, pits, or warping will create gaps where fluid can leak, reducing the seal’s effectiveness. Precision machining and lapping processes ensure that high-quality rings and faces have a smooth, flat surface, with finishes measured in Ra (roughness average) values as low as 0.025 μm. This level of precision is critical for applications with low-viscosity fluids (e.g., gasoline), where even small gaps can lead to significant leakage.
Hardness and Wear Resistance
Hardness is a key indicator of a material’s ability to resist wear and deformation. Measured using the Rockwell or Vickers scale, harder materials (like tungsten carbide, with a Vickers hardness of 1800–2200 HV) are better suited for abrasive environments. However, hardness must be balanced with toughness to avoid brittleness—for example, ceramic is hard but can crack under sudden impact, making it less suitable for applications with vibration or shock. High-quality rings and faces are engineered to strike this balance, ensuring they resist wear without sacrificing durability.
Thermal Conductivity and Expansion
In high-temperature applications, the ability of a ring or face to conduct heat and resist thermal expansion is critical. Materials with high thermal conductivity (like metal-bonded tungsten carbide) dissipate heat away from the interface, preventing overheating. Additionally, materials with low thermal expansion coefficients maintain their shape and flatness even as temperatures fluctuate, ensuring the seal remains tight. For example, in steam turbines, where temperatures can reach 500°C, silicon carbide’s low thermal expansion (4.5 × 10⁻⁶ /°C) prevents warping that would break the seal.

Our Premium Mechanical Seals Rings and Faces Specifications

We specialize in manufacturing high-precision mechanical seals rings and faces, engineered to deliver exceptional performance in diverse industrial applications. Our products are crafted from premium materials and machined to strict tolerances, ensuring reliability, durability, and compatibility with a wide range of fluids and operating conditions. Below are the specifications of our most popular models:

Feature	Carbon Graphite Face with Ceramic Ring	Tungsten Carbide Face with Silicon Carbide Ring	PTFE-Coated Ring with Carbon Graphite Face
Materials	Face: Resin-impregnated carbon graphite; Ring: 95% alumina ceramic	Face: Nickel-bonded tungsten carbide; Ring: Reaction-bonded silicon carbide	Ring: PTFE-coated stainless steel 316; Face: Antimony-impregnated carbon graphite
Hardness	Face: 60–70 Shore D; Ring: 1500–1800 HV	Face: 1800–2200 HV; Ring: 2400–2800 HV	Ring: 50–60 Shore D; Face: 65–75 Shore D
Surface Finish	Ra 0.025 μm (polished)	Ra 0.015 μm (lapped)	Ra 0.05 μm (smooth)
Temperature Range	-20°C to 250°C (-4°F to 482°F)	-50°C to 500°C (-58°F to 932°F)	-50°C to 200°C (-58°F to 392°F)
Pressure Rating	Up to 20 bar (290 psi)	Up to 100 bar (1450 psi)	Up to 10 bar (145 psi)
Fluid Compatibility	Water, oils, diesel, mild chemicals	Crude oil, acids, high-temperature fluids, slurries	Strong acids, alkalis, food-grade liquids, pharmaceuticals
Wear Resistance	Good (non-abrasive fluids)	Excellent (abrasive and high-pressure environments)	Good (chemical resistance, moderate wear)
Applications	General industry pumps, HVAC, water treatment	Oil & gas, chemical processing, mining, power generation	Chemical processing, pharmaceuticals, food & beverage
Certifications	ISO 9001, FDA compliant	ISO 9001, ATEX certified	ISO 9001, FDA, 3A Sanitary Standard
Typical Lifespan	12–18 months (continuous use)	24–36 months (continuous use)	8–12 months (continuous use)
Price Range	\(25–\)80 per set	\(60–\)200 per set	\(30–\)100 per set

Our Carbon Graphite Face with Ceramic Ring set is a versatile option for general industrial applications, offering a balance of self-lubrication, wear resistance, and cost-effectiveness. It performs reliably in water treatment, HVAC systems, and light manufacturing, where non-abrasive fluids and moderate pressures are common.

The Tungsten Carbide Face with Silicon Carbide Ring set is engineered for extreme conditions, making it ideal for oil & gas, mining, and power generation. Its exceptional hardness and heat resistance ensure longevity even in high-pressure, high-temperature environments with abrasive fluids.

For applications requiring chemical resistance, our PTFE-Coated Ring with Carbon Graphite Face set is the perfect choice. The PTFE coating resists attack from strong acids and alkalis, while the carbon graphite face provides self-lubrication, making it suitable for chemical processing, pharmaceuticals, and food production.

All our rings and faces undergo rigorous quality control, including dimensional checks, surface finish testing, and material certification, to ensure they meet or exceed industry standards. We also offer custom machining to meet specific size, hardness, or finish requirements for unique applications.

FAQ: Common Questions About Mechanical Seals Rings and Faces

Q: How do I choose the right material pairing for mechanical seals rings and faces in my application?

A: Choosing the right material pairing depends on your application’s specific conditions, including the fluid type, pressure, temperature, and abrasiveness. Start by assessing the fluid: for corrosive chemicals, prioritize materials like PTFE or silicon carbide; for abrasive slurries, opt for hard materials like tungsten carbide or silicon carbide. Next, consider pressure and temperature: high-pressure systems (above 50 bar) require hard, strong materials (e.g., tungsten carbide), while high-temperature environments (above 300°C) need heat-resistant materials (e.g., silicon carbide). Also, balance hardness with lubrication: carbon graphite offers self-lubrication but is softer, so pair it with harder materials like ceramic for non-abrasive fluids. For guidance, consult with a seal specialist who can analyze your operating conditions and recommend a compatible pairing—this ensures optimal performance and longevity.

Q: Can mechanical seals rings and faces be reconditioned, or should they be replaced when worn?

A: In most cases, worn mechanical seals rings and faces should be replaced rather than reconditioned. The precision required for these components—such as flatness within micrometers and a smooth surface finish—is difficult to restore once they are worn or damaged. Reconditioning (e.g., resurfacing) can introduce inconsistencies in the surface, leading to leaks or premature failure. Additionally, many materials (like carbon graphite) wear unevenly, making reconditioning ineffective. For cost-sensitive applications, some companies offer reconditioning services for high-value components (e.g., tungsten carbide), but this is only reliable if the damage is minimal and the reconditioned surface meets strict flatness and finish standards. In general, replacing worn rings and faces with new, high-quality components is the safest and most cost-effective choice to ensure reliable performance and prevent downtime.

Mechanical seals rings and faces are the unsung heroes of industrial machinery, playing a critical role in preventing leakage, ensuring safety, and maintaining efficiency. Their performance is determined by careful material selection, precision machining, and compatibility with the application’s conditions—factors that directly impact operational costs, equipment lifespan, and compliance with regulations. By investing in high-quality rings and faces, businesses can minimize downtime, reduce maintenance costs, and ensure their machinery operates reliably even in the most demanding environments.

At Ningbo Zhongli John Seals Co., Ltd. we are committed to manufacturing mechanical seals rings and faces that set the standard for quality and performance. Our range of material pairings and precision-engineered components is designed to meet the diverse needs of industries worldwide, from general manufacturing to extreme oil & gas applications. Whether you require chemical resistance, extreme hardness, or self-lubrication, we have a solution tailored to your needs.

If you’re seeking reliable, high-performance mechanical seals rings and faces for your industrial equipment, contact us today. Our team of experts will help you select the perfect components for your application, ensuring optimal performance and peace of mind.
