What Are the Main Applications of Fuses Within an Electric Vehicle
2025-09-03
As electric vehicles (EVs) become more advanced, the role of circuit protection has never been more critical. Fuses are essential safety components that protect high-value systems from overcurrent, short circuits, and electrical failures. Understanding where and how they are used can help manufacturers and users enhance safety and performance.
In EVs, fuses are strategically placed to protect core systems such as the battery pack, on-board charger (OBC), inverter, DC-DC converter, and charging ports. Each of these applications demands fuses with specific ratings and characteristics to ensure reliability under high voltage and dynamic operating conditions.
At Yinrong, we specialize in designing fuses that meet these rigorous demands. Our products are used in multiple key areas within EVs and HEVs:
-
Battery Pack Protection: High-voltage fuses safeguard the battery from overcurrent and catastrophic failures.
-
On-Board Charger (OBC): Fuses ensure safe AC-to-DC conversion during charging.
-
Inverter System: Protection for power electronics that drive the motor.
-
DC-DC Converter: Fuses defend auxiliary systems and low-voltage circuits.
-
Charging Ports and External Chargers: Critical for both internal and external EV and HEV Charger Fuse applications.
Here's a quick look at some of Yinrong’s key product specifications for typical EV fuse applications:
| Application | Model Series | Voltage Rating (VDC) | Current Rating (A) | Breaking Capacity (kA) |
|---|---|---|---|---|
| Battery Pack | YR-HV800 | 800 | 200-500 | 30 |
| On-Board Charger | YR-OBC650 | 650 | 10-100 | 20 |
| DC-DC Converter | YR-DC300 | 300 | 5-50 | 15 |
| EV and HEV Charger | YR-CF1000 | 1000 | 50-400 | 25 |
FAQ Common Questions

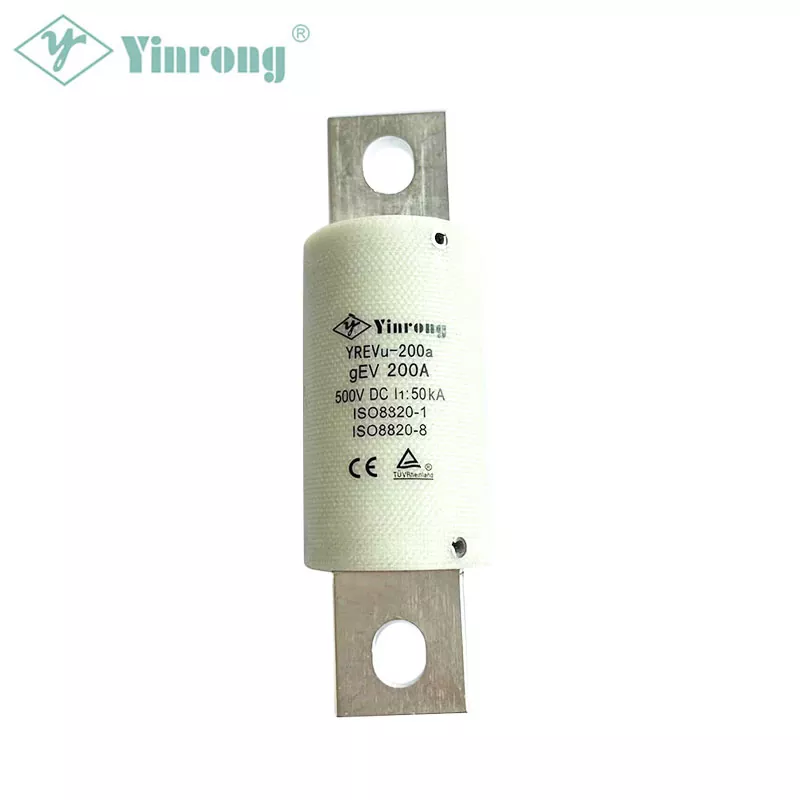

What is the importance of a dedicated EV and HEV Charger Fuse
These fuses are crucial for preventing overheating and electrical fires during charging. They are designed to interrupt high-voltage DC faults efficiently, ensuring safety for both the vehicle and the user.
How do I choose the right fuse for an EV charging application
Consider voltage and current ratings, breaking capacity, operating temperature range, and compliance with international standards such as IEC and UL. Yinrong fuses are tested extensively to meet industry requirements.
Can the same fuse be used for different EV systems
No. Different systems have unique electrical characteristics. For example, the EV and HEV Charger Fuse must handle high inrush currents during charging, while battery fuses need higher interrupting ratings.
Upgrade your safety and performance with Yinrong’s specialized range of high-voltage fuses. Whether you're designing a new EV platform or optimizing an existing system, our team is ready to help. Contact us today to request technical support or product samples.
