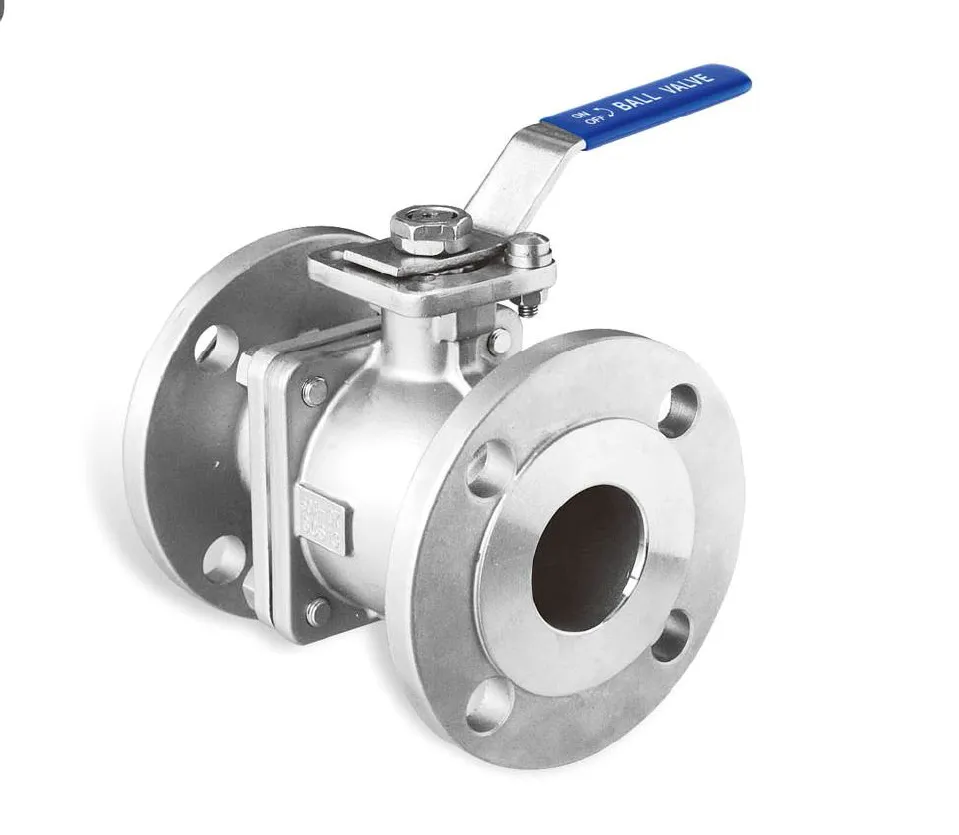

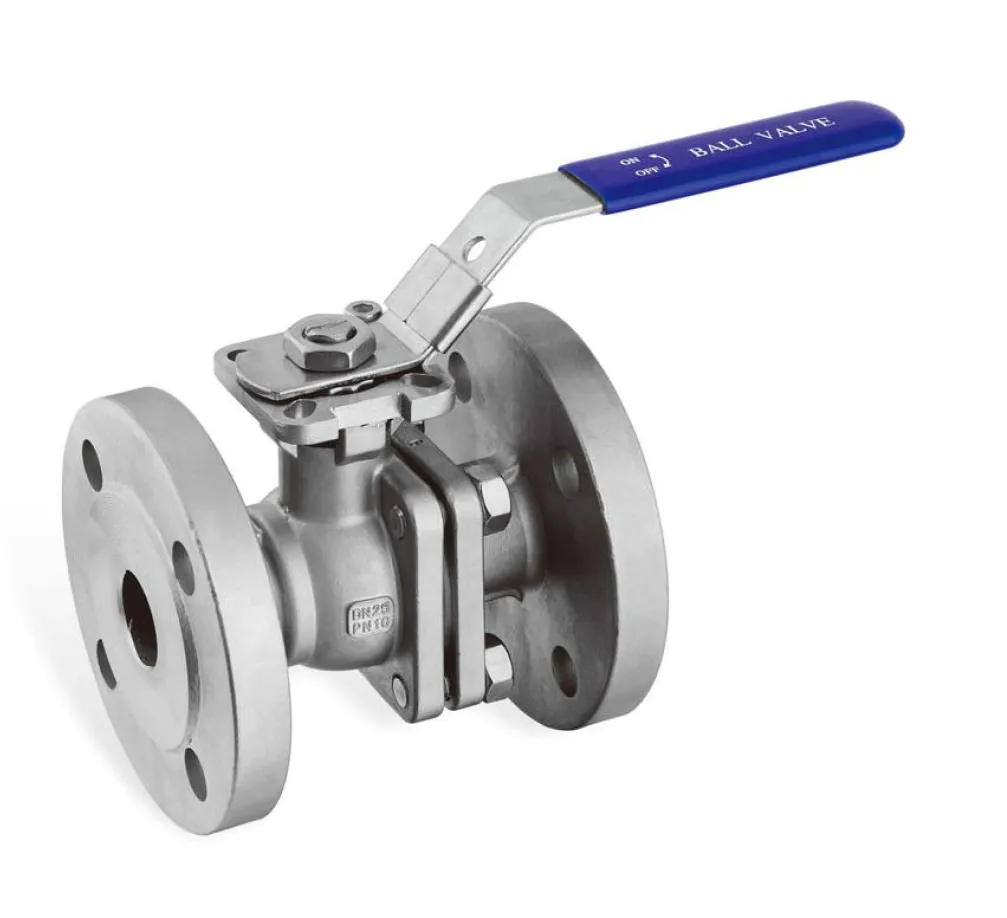

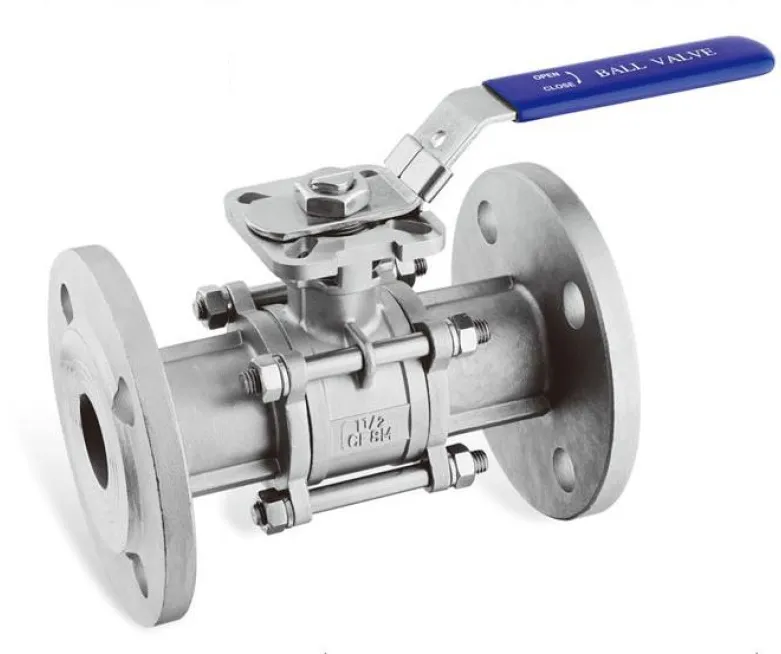

JIS Flanged Direct Mounting Pad Stainless Steel Ball Valve

JIS Flanged Direct Mounting Pad Stainless Steel Ball Valve

Features
* Jis 10k
* Full port
* Investment casting
* Blow-out proof stem
* ISO5211 Mounting Pad
* PED97/23/PE(CE0035) Approved
* Casting approved ad2000-WO
* Design:JIS B2002
* End flange: JIS B2238
* Inspection Testing: JIS B2003 AP1598

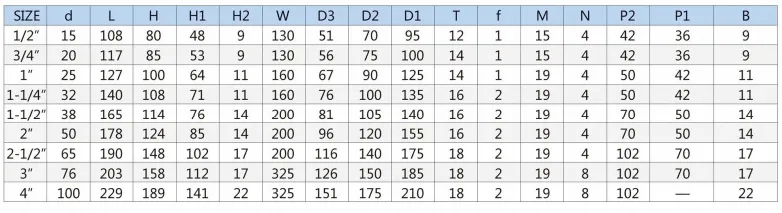

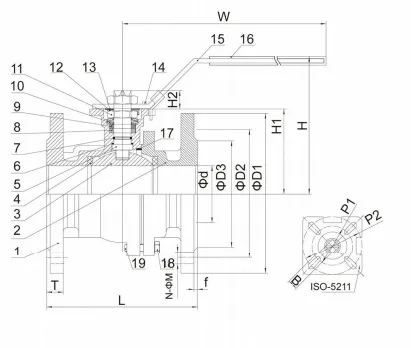

Dimension

Why choose us

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
