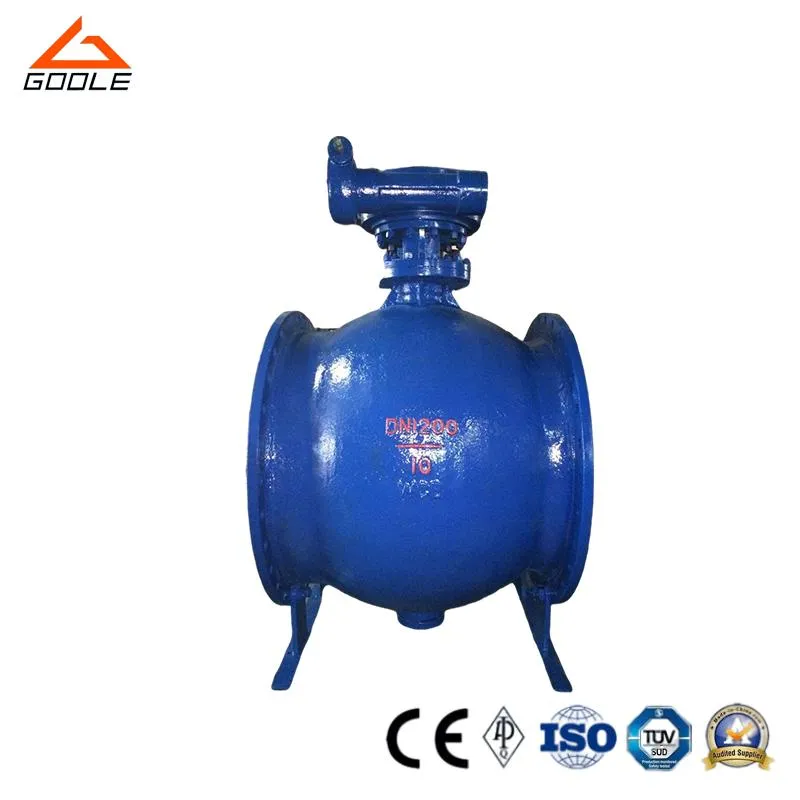

Handwheel Flanged Eccentric Half Ball Valve (GAPQ340H)
Handwheel eccentric half ball valve specification.Pressure class: Class 150-300LBDiameter range: 2"~56"Temperature: ≤550ºCConnecting type: flangeBall: half ball Applicable medium : water, sewage, gas, oil, natural gas, steam, etc.Driving means: manual, electric, worm gear, ......
Send Inquiry
Product Description
Handwheel eccentric half ball valve specification.
Pressure class: Class 150-300LB
Diameter range: 2"~56"
Temperature: ≤550ºC
Connecting type: flange
Ball: half ball
Applicable medium : water, sewage, gas, oil, natural gas, steam, etc.

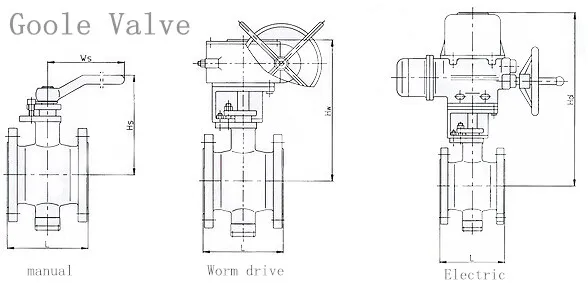

Driving means: manual, electric, worm gear, etc.
Available Material:SS, CS, A105, A216, CF8M, LCB ( Selected at clients'request )
Standards compliance.
1: Design and Manufacturing: AP16D
2: Inspection and Test : AP1598.
3: Flange: JB/T79.1 ~ 1994; ASME/ANSIB16.10
4.Face to Face Dimension: ASME B 16.10, AP16D
5. Fire-safe: API 607,API 6FA
Handwheel eccentric half ball valve features.
1.Sealed tight, conveying harmful gases can reach zero leakage.
2.Suitable for high velocity
3.sealing face won't cause erosion
4.Non-toxic,environmental-friendly material
5. Customized design offered
Pressure class: Class 150-300LB
Diameter range: 2"~56"
Temperature: ≤550ºC
Connecting type: flange
Ball: half ball
Applicable medium : water, sewage, gas, oil, natural gas, steam, etc.
Driving means: manual, electric, worm gear, etc.
Available Material:SS, CS, A105, A216, CF8M, LCB ( Selected at clients'request )
Standards compliance.
1: Design and Manufacturing: AP16D
2: Inspection and Test : AP1598.
3: Flange: JB/T79.1 ~ 1994; ASME/ANSIB16.10
4.Face to Face Dimension: ASME B 16.10, AP16D
5. Fire-safe: API 607,API 6FA
Handwheel eccentric half ball valve features.
1.Sealed tight, conveying harmful gases can reach zero leakage.
2.Suitable for high velocity
3.sealing face won't cause erosion
4.Non-toxic,environmental-friendly material
5. Customized design offered
